Waste Solar Panels Glass Removal Separating Machine

Machine Specifications:
• Model: RSK-1000
• Type: Fully Automatic Waste Solar Panel Glass Removal & Separating Machine
• Application: Recycling and separation of glass from scrap PV solar panels
• Panel Size Range: 800 mm – 1300 mm width
• Output Capacity: 60–70 panels/hour
• Glass Removal Rate: 85% – 95%
• Power Source: Electric
• Motor Power: 30.5 kW
• Voltage: 380V, 3-Phase
• RPM Range: 60–70
• Automation Grade: Fully Automatic
• Cutting Blades: 108 glass milling cutters
• Dust Control: 36-bag dust removal system
• Machine Dimensions: 9200 × 5200 × 4200 mm
• Machine Weight: 7020 kg
• Material Type: Steel
• Features: Automatic size adjustment, glass classification, conveyor collection system, flat and curl-free panel handling, pollution-free design

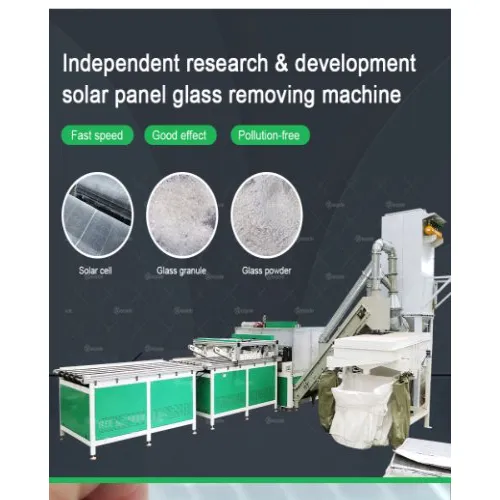

The RSK-1000 is an advanced, fully automatic system engineered for the eco-friendly dismantling and glass separation of discarded photovoltaic (PV) solar panels. Developed through independent research and innovation, this machine supports clean, efficient, and high-precision recycling processes—significantly reducing environmental impact while maximizing material recovery. It is capable of handling panels with widths ranging from 800 mm to 1300 mm, ensuring flat, curl-free processing with automatic centering and size adjustment. Adhesive strips over 2.5 mm can be manually removed, and broken glass is safely collected using a dedicated conveyor system.

The RSK-1000 features a three-layer vibrating screen that classifies separated glass by size and an automatic cutting unit that slices panels into strips for downstream processing. With a glass removal rate of 85–95%, it processes 60–70 panels per hour, making it ideal for high-output operations. The machine is powered by a 30.5 kW motor, equipped with 108 glass milling blades, and includes a 36-bag dust removal system for clean and safe working conditions. Its durable steel structure, measuring 9200 × 5200 × 4200 mm and weighing 7020 kg, ensures reliable, industrial-grade performance for continuous use.

Whether you're upgrading your recycling line or launching a new solar panel recovery operation, the RSK-1000 offers the automation, efficiency, and durability your project demands. Get in touch with us to receive a full technical brochure, pricing details, and guidance on integration into your existing systems.
