ACSR Wire Chopper and Separator

New MachineNew
Price :  8600 USD

Category

General

SubCategory

Separators
Model : RSK260
Location : ChinaZhengzhou, Henan, China.
Separators | ACSR Wire Chopper and Separator
Separators | ACSR Wire Chopper and Separator thumbnail 1Separators | ACSR Wire Chopper and Separator thumbnail 2Separators | ACSR Wire Chopper and Separator thumbnail 3Separators | ACSR Wire Chopper and Separator thumbnail 4Separators | ACSR Wire Chopper and Separator thumbnail 5

Product Brochures

Scrap ACSR Wire Recycling
Easy Operation ACSR Chopping Machine High Separati...
Year : 2024
Origin :  China  China
Power Source : Electric
Weight : 2000 KG
Voltage : 400
Phase : 3-Phase
Dimensions : 2000*1800*2450
Material Type : Steel
Capacity : 300 - 500 Kg / Hr
Automation Grade : Fully Automatic
Motor Power : AC Motor
RPM : 1440
Material Type : Steel

Specifications

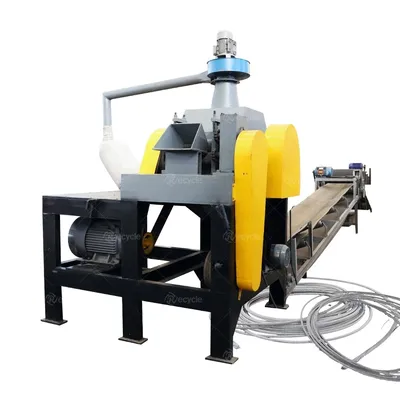

The RSK260 ACSR Recycling Machine by Henan Recycle is engineered for efficient aluminum-steel separation from ACSR cables. It features a robust power setup—18.5?kW + 3?kW + 0.75?kW—and a wide f200?mm inlet, accommodating multiple strands. With a f100?mm feed diameter, the machine measures 2000 × 1800 × 2450?mm, weighs 2000?kg, and includes one fixed knife and six H13 alloy moveable knives. A dedicated 3-speed gearbox enables a max processing speed of 50?m/min, achieving an impressive 99% sorting rate. It cuts material into lengths of 10?mm, 20?mm, or 50?mm, ensuring high throughput and precision

Usage / Application

The RSK260 is designed for efficient recycling of ACSR cables, combining cutting and separation into a single streamlined operation:

Feed ACSR cables through the f200?mm inlet (supports multiple strands).

Cut the cables into small segments (10/20/50?mm) using H13 steel knives.

Separate aluminum from the steel core at up to 50?m/min with a 99% efficiency rate.

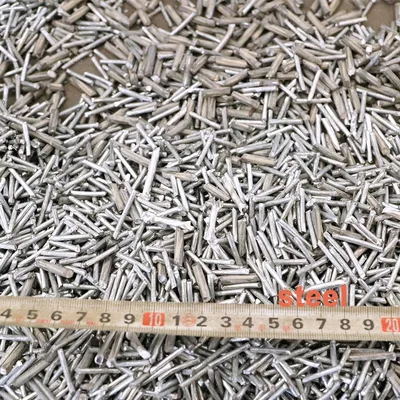

Collect the separated aluminum and steel for further processing or resale.
