Year : 2022
Origin :
India Power Source : Electric
Weight : 10000 KG
Voltage : 1.7
Phase : 3-Phase
Dimensions : 9.2 x 3.5 x3.4
Material Type : Mix Metal
Automation Grade : CNC Controlled
Motor Power : AC Motor
Frequency : 1
Material Type : Mix Metal
Specifications

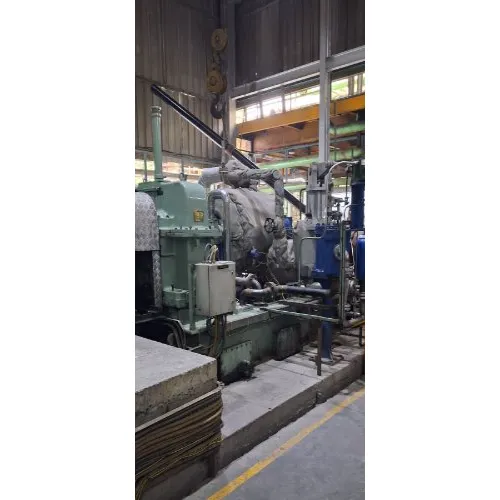

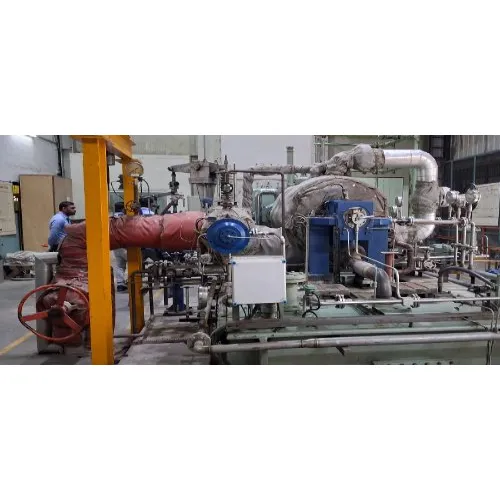

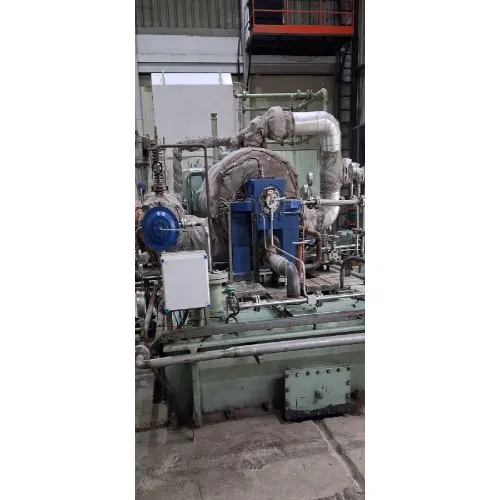

1.7 MW Back Pressure Turbine
Gear box, coupling & baring gear.
3750 KVA, 11 KV Alterternator with alternator cooler & exciter
Lube oil System with pump & piping
EOP Syetem with pump & piping
Oil cooler system
Gland cooler system
Turbine control panel
Turbine MCC
Sync. Panel
Generator relay panel
AVR panel
Generator metering panel
11 KV VCB isolator panel
LASCPT panel
NGR panel
110 V DC battery charger & batterybank
EOP panel
Local Gauge panel
BOP like valve, spring support, in let & Out let piping with expansion bellow

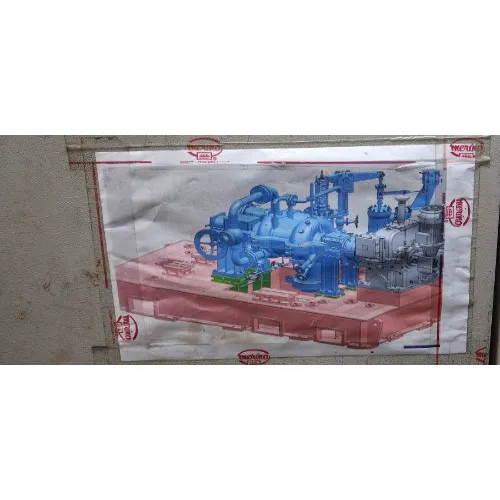

Drawing, O&M manual, Log sheet
Field instrument & corresponding cables
Main Steam Stop Valve
Usage / Application
Back pressure turbines are used in industrial applications, especially cogeneration or combined heat and power (CHP) plants, to produce both electricity and low-pressure process steam from high-pressure steam. They are more efficient than using pressure-reducing valves because they convert the steam's expansion energy into electricity before releasing the steam at a required pressure for processes
